CTR2-Flex – w/ 3D Printed Enclosure

$105.00

CTR2-Flex is a standalone radio controller for the Flex 6xxx/8xxx series of SDR radios base on the M5Dial from M5Stack. It features a touchscreen and one or two external encoders. CW paddle input is provided on all models.

This model comes in a 3D printed enclosure designed by Neil G7UFO. Neil has done an excellent job of designing a nice enclosure that will look good on your operating desk. The original CTR2-Flex is housed in a commercial New Age enclosure that is CNC cut to house the CTR2-Flex components and can be ordered here.


NOTE: The paddles shown in the photos are not included.

For more information scroll down or visit the CTR2-Flex page.

This unit includes a CTR2-Flex and CTR2-Dial license key. Please check the Add a note to your order section on the Checkout page and enter your call sign so I can create your key.

Description




Unlike CTR2-Dial or CTR2-MIDI which are one-way MIDI controllers, CTR2-Flex connects directly to your Flex radio using the Flex API over WiFi and works with all Windows, Mac, and iOS versions of SmartSDR. In fact, it can even work along side a CTR2-Dial or CTR2-MIDI. Even better, you can have two or more CTR2-Flex units connected to your radio with each controlling a different slice.

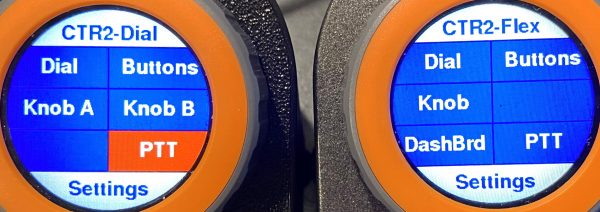

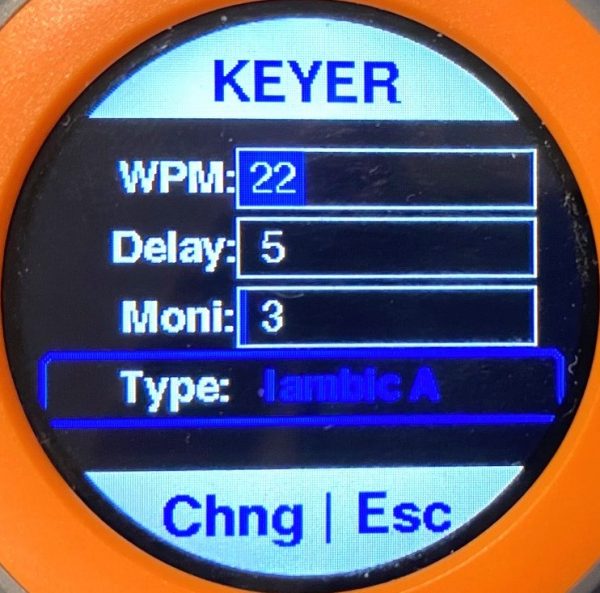

CTR2-Flex has a built-in keyer and sidetone. All models support CW paddle input, even the dual-encoder model. You can run CTR2-Dial firmware on CTR2-Flex hardware if you want the CW paddle input on a dual-encoder MIDI controller.

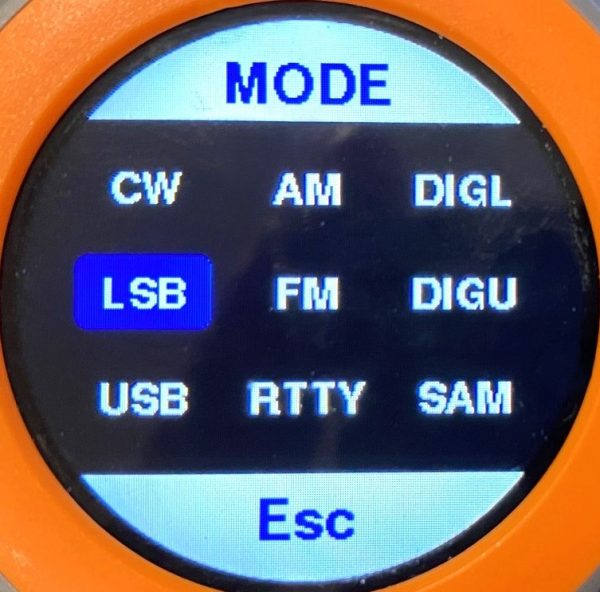

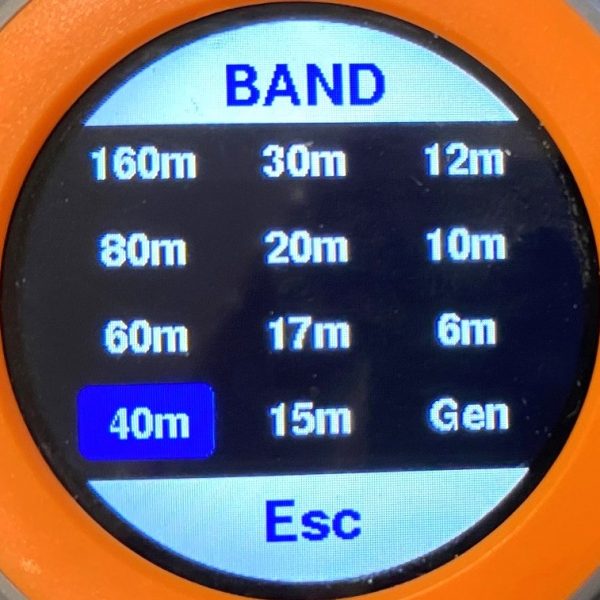

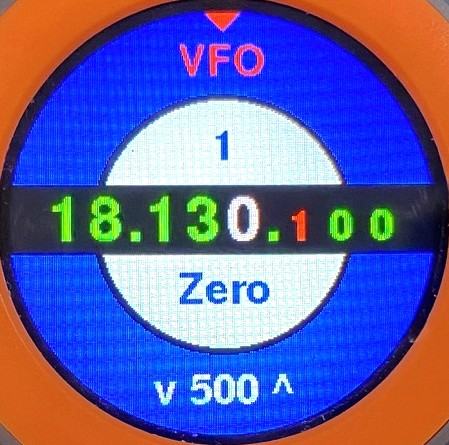

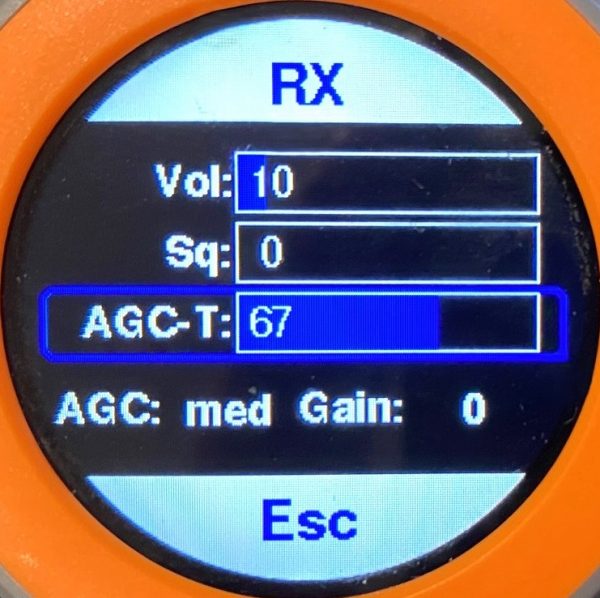

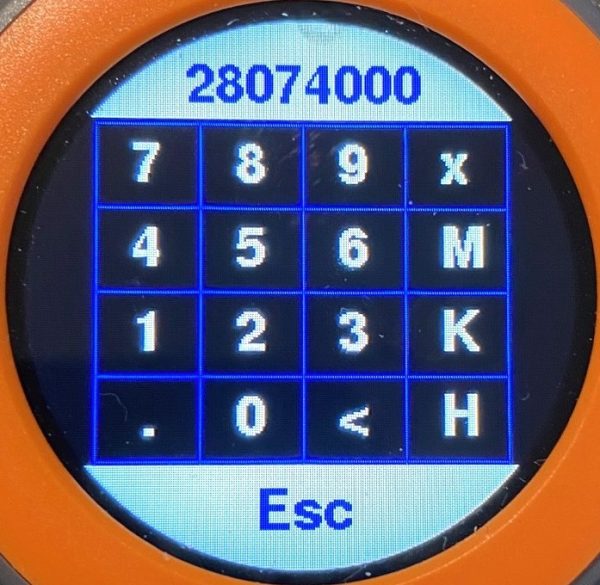

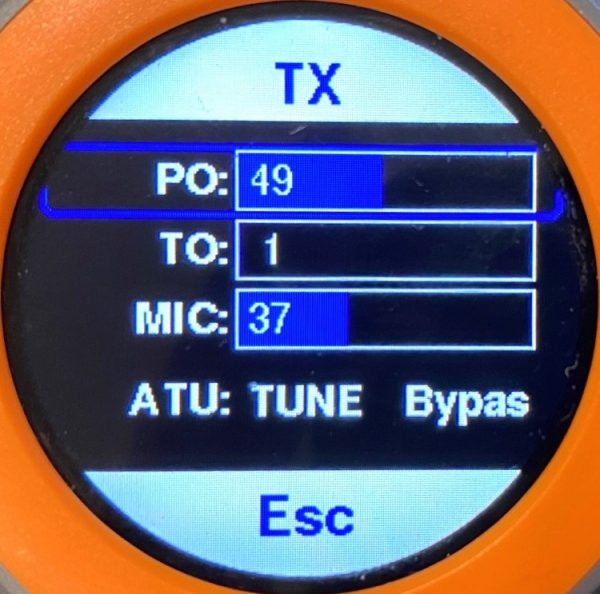

CTR2-Flex includes a touchscreen display that doubles as a control surface offering virtual Dials and Buttons similar to CTR2-Dial that allows you to easily change the frequency and settings on your radio. The Dashboard page brings all of the controls to a compact, easy to navigate control page.

Connect your CW paddle to any version of CTR2-Flex and operate true CW on your radio.

At the current time, CTR2-Flex is only available as a completely assembled and tested unit. It’s available in either a single or dual-encoder package.

Select from no-detent (smooth) or detent (bumpy) encoder types.

This unit includes a CTR2-Flex and CTR2-Dial license key. Please check the Add a note to your order section on the Checkout page and enter your call sign so I can create your key.

Additional information

Weight .5 lbs
Dimensions 6 × 4 × 4 in
Number of Encoders

One, Two

Encoder Type

No-Detent (smooth), Detent (bumpy)
