CTR2-Mini is evolving into a full featured ecosystem. The CTR2-Mini+ provides the hardware to convert the Seeed Studio Wio Terminal into a complete, easy to use radio controller system. New products add even more functionality to your CTR2-Mini+.
AVAILABLE FOR PURCHASE
The following is a summary of the items available for purchase. You can download the spreadsheet or use the order from at the bottom of this page to submit an order. If you have any questions, contact me.
PCB KITS | DESCRIPTION | PRICE (USD) |
![]() CTR2-Mini-PLUS-PCB-KIT | CTR2-Mini+ printed circuit board kit includes pre-installed SMD components, installed Wio GPIO connector, front panel, base PCB, rear panel, mounting hardware, and 25mm tilt legs. Order parts to complete this kit from Mouser. | $17.00 |
![]() CTR2-Mini-IO-MUX-PCB | CTR2-Mini I/O Multiplexer PCB kit includes the front and back panels, the main PCB with SMD components pre-installed, and mounting hardware. Order parts to complete this kit from Mouser. | $15.00 |
![]() CTR2-Mini-AUDIO-CTRLR-PCB | CTR2-Mini Audio Controller PCB kit includes the front and back panels and the main PCB with SMD components pre-installed. Requires CTR2-Mini Audio I/O modules for each radio. Order parts to complete this kit from Mouser. | $15.00 |
![]() CTR2-Mini-AUDIO-IO-PCB | CTR2-Mini Audio I/O module PCB kit. The Audio I/O module is required for each radio when using the CTR2-Mini Audio Controller. Kit includes one Toshiba TBD62083APG IC. Order parts to complete this kit from Mouser. | $4.00 |
![]() CTR2-Mini-RADIO-IO-PCB | CTR2-Mini Radio I/O module PCB kit. One Radio I/O module is required for each radio when selecting from multiple radios. Order parts to complete this kit from Mouser. | $1.50 |
![]() CTR2-Mini-ASC-1X-PCB | CTR2-Mini 1×8 Port Antenna Switch Controller PCB kit includes the main PCB with pre-installed SMDs, Wio GPIO board, Encoder/Pushbutton PCB, and eight 100mm DuPont F/F jumpers. Order parts to complete this kit from Mouser. | $12.00 |
![]() CTR2-Mini-ASC-2X-PC | CTR2-Mini 2×4 Dual-Port Antenna Switch Controller PCB kit includes the main PCB with pre-installed SMDs, Wio GPIO board, Encoder/Pushbutton PCB, and eight 100mm DuPont F/F jumpers. Order parts to complete this kit from Mouser. | $12.00 |
ENCLOSURE KITS | DESCRIPTION | PRICE (USD) |
![]() CTR2-Mini-PLUS-ENCLOSURE | CNC machined PacTec KEU-5 sloped panel enclosure to house the CTR2-Mini+ PCB kit. | $20.00 |
![]() CTR2-Mini-RADIO-IO-ENCLOSURE | CNC machined Hammond 1551B enclosure to house the CTR2-Mini+ Radio I/O PCB. | $4.00 |

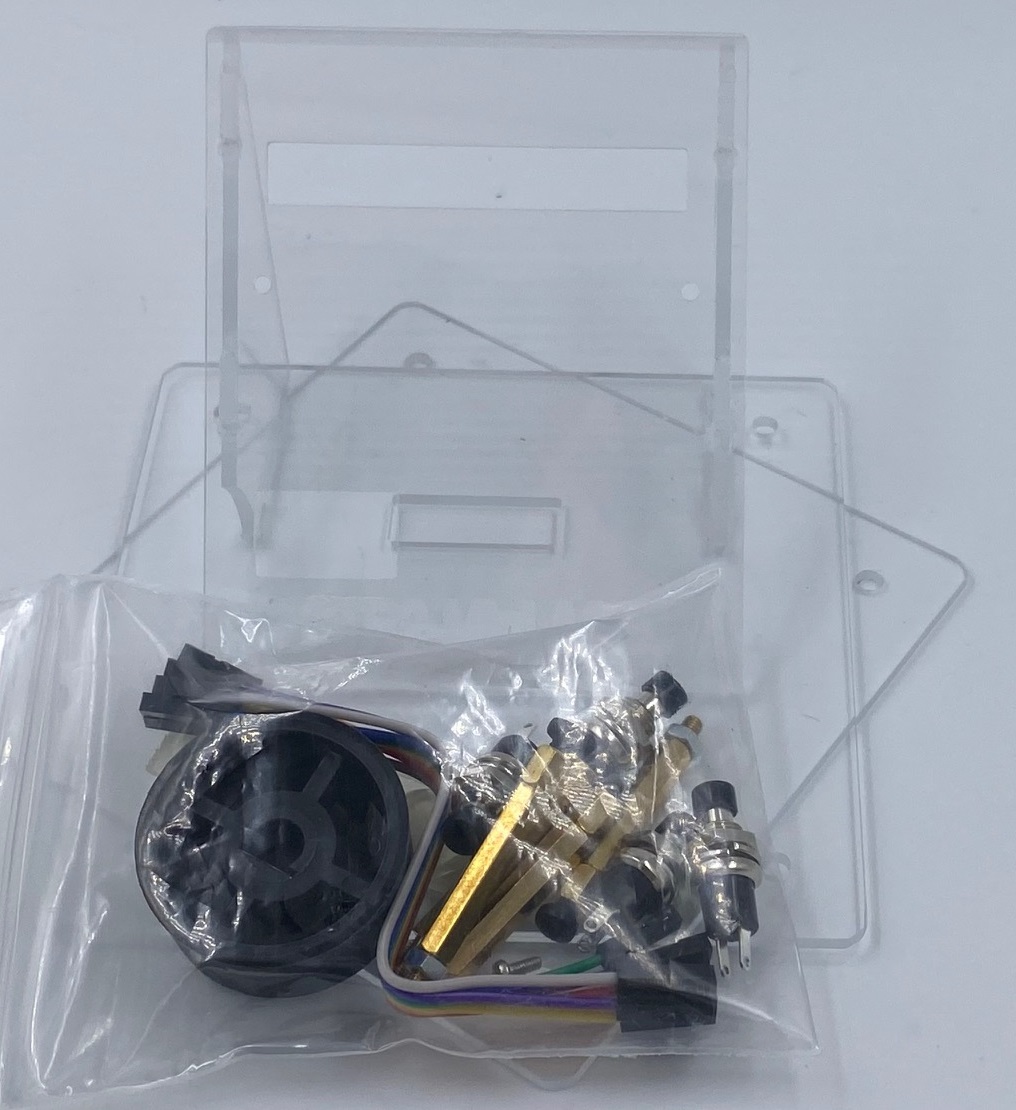

![]() CTR2-Mini-ASC-ENCLOSURE | This kit includes everything you need to complete the ASC PCB kit including an assembled acrylic stand with top and bottom plates, a 1.3″ knob, four SPST pushbutton switches, 5 DuPont jumpers, mounting hardware, and 4 silicone rubber feet. | $25.00 |
ASSEMBLED UNITS | DESCRIPTION | PRICE (USD) |
![]() CTR2-Mini-PLUS-ASSM | Fully assembled and tested CTR2-Mini+ radio controller. Includes a programmed Wio Terminal with the eRPC firmware update and a micro-SD memory card. Order radio interface cables separately. | $140.00 |
![]() CTR2-Mini-IO-MUX-ASSM | Fully assembled and tested CTR2-Mini I/O Multiplexer with four Radio I/O ports. Contact me for 2 and 3 port pricing. | $110.00 |
![]() CTR2-Mini-AUDIO-CTRLR-ASSM | Fully assembled and tested CTR2-Mini Audio Controller allows you to share two microphones, headphones, and PC sound card with all of your radios. Requires a CTR2-Mini Audio I/O module on each radio. | $95.00 |
![]() CTR2-Mini-AUDIO-IO-ASSM | Fully assembled and tested CTR2-Mini Audio I/O module. Required for each radio when using the CTR2-Mini Audio Controller. Replaces the CTR2-Mini Radio I/O module. | $36.00 |
![]() CTR2-Mini-RADIO-IO-ASSM | Fully assembled and tested CTR2-Mini Radio I/O module. NOTE: New modules use jumpers instead of the DIP switch shown. | $18.00 |
![]() CTR2-Mini-ASC1X-ASSM | Fully assembled and tested CTR2-Mini Antenna Switch Controller for 1×8 remote antenna switches. (One radio port with 8 antenna ports). Allows multiple antenna port selection for phased arrays. | $170.00 |
![]() CTR2-Mini-ASC2X-ASSM | Fully assembled and tested CTR2-Mini Antenna Switch Controller for 2×4 remote antenna switches. (Two radio ports with 4 antenna ports). Can be expanded to 2×8 ports with additional controller card. | $170.00 |
RADIO INTERFACE CABLES | DESCRIPTION | PRICE (USD) |
![]() FT8X7DIN8 | 6 foot cable connects the Mini to the the Yaesu FT817, FT857, or FT897 CAT port using an 8-pin Mini-DIN connector. Built with a stereo 3.5mm male on one end and a 8-pin Mini-DIN on the other. | $15.00 |
![]() PTTKEY6 | 6 foot cable with a 3.5mm (1/8″) stereo plug that splits the Mini’s PTT/Key Outputs to separate 3.5mm plugs. A 3.5mm jack is provided for PTT that must be wired to your radio’s auxiliary connector. | $15.00 |
![]() PTTKEYDIN8 | 6 foot cable with a 3.5mm stereo plug that splits the PTT/Key Output on the Mini to an 8-pin Mini-DIN plug for PTT and a 3.5mm stereo plug that connects to the Key input on the radio. This cable fits the Xiegu G90 or X5105. | $17.00 |
![]() PTTKEYFLEX6 | 6′ splitter cable with a 3.5mm stereo male that connects the PTT/Key jack on the Mini to a DB15-M 3-row connector that plugs into the ACC socket on the Flex and a 3.5mm stereo plug to connect to the Key input on the radio. | $15.00 |
![]() RS232FF6 | This is a 6 foot cable for radios with an RS232 DB9-Male CAT port such as the Yaesu FTdx101. It includes a 3.5mm male plug that connects the CAT I/O port on the Mini to the DB9-Male on the radio. It includes a female/ female null modem adapter to roll the TD and RD pins. | $13.00 |
![]() RS232FM6 | 6 foot cable for the Icom PCR1000 receiver and other radios that use a DB9-female RS232 CAT connector. It includes a 3.5mm male plug that connects the CAT I/O port on the Mini to the DB9-Female on the radio. It includes a male/female null modem adapter to roll the TD and RD pins. | $13.00 |
![]() STEREOMM6 | 6 foot cable with a 3.5mm (1/8″) stereo plug on each end. Used to connect the Mini’s CAT or Key/PTT Out to various radios. | $6.50 |
HOW TO ORDER
You can click the link below to download an Excel based order from. The Excel form will calculate the total cost of your order before shipping. There’s a link at the bottom of the form that creates an email to send it back to me.
Or, you can use the online form at the bottom of this page to submit your order. Regardless of the method you choose I’ll send you an order confirmation with the total cost of your order including shipping.
If the options on the order form don’t match your needs, or you’re not sure what you need to order, just describe what you’re looking for in the ADDITIONAL INFORMATION field on the form below and submit the order form. I’ll get back with you to discuss your needs. You can also contact me directly if you have any questions.
Make sure your email address is correct and enter your shipping address in the Additional Information field if it different than what’s listed in QRZ.com.
Enter the quantity of each item you want to order in the fields below.
I will respond to your order email with a quote for the total cost including shipping. Shipping costs vary depending on what you order and your location. I will fill orders on a first come, first served basis. Parts availability has, and may continue to cause unexpected delays. I keep a limited number of PCBs in stock so these generally ship immediately.
Complete units are custom built as they are ordered so it may take a few days for yours to ship depending on the number of units ahead of yours and parts availability. I will keep you posted on your unit’s progress.
No payment is required until I have your items ready to ship. At that time I’ll email you an invoice for payment. Once payment has been received (and cleared if paying by personal check) I’ll mail your order via USPS and email you the tracking number.
I accept PayPal or personal checks drawn on a US bank for the exact purchase price. Please specify which your prefer on the order form. PayPal fees will be added to the quote if you specified this payment method. PayPal fees are 3%.
NOTE: To make sure my emails don’t get sent to your spam/junk folder, add my email address to your email white list.
Use the [Tab] key to move to the next item on the order. Pressing [Enter] will submit the order.
Once you click Submit the form will clear and a message will appear showing the status of your order submittal.
You may cancel your order at any time prior to the ship date. Just send me an email to cancel.
Please note the following:
The CTR2-Mini+ does not come with an external Radio I/O module. You can control one radio using the internal radio I/O circuit in this unit. If you want to control multiple radios using a manual RJ45 switch as shown in this post, order one Radio I/O module for each radio and remove the jumpers on the internal radio I/O circuit in the Mini+.
NOTE: If you’re interested in the PCB kit, enclosures, or an assembled original CTR2-Mini (as seen in the September 2022 issue of QST) contact me for availability and discount pricing.
