Description
April 15, 2025
The New Age enclosure I use in this unit is currently back-ordered from the supplier with no delivery date. I have 4 single-encoder and 1 dual-encoder enclosures left. Once these are sold I’ll stop taking orders for this unit until the new stock arrives.
Sorry for the inconvenience,
Lynn
The beauty of CTR2-Dial is that it uses modular construction so it’s easy to build into any enclosure you can imagine.
This model uses a commercial New Age enclosure that is CNC cut to house the CTR2-Dial components. The design allows you to configure the unit in four configurations as seen in the photo gallery. Simply move the tilt legs to the side you want elevated and use the Rotate Display option in the Settings menu to rotate the display. Two additional flat feet are provided if you just want to set the unit flat on your desk.
An alternate enclosure has been designed by Neil, G7UFO. It is a 3D printed enclosure that gives CTR2-Dial a unique, custom look. You can order a CTR2-Dial in the 3D enclosure here. Neil also sells CTR2-Dial’s in his enclosure in his shop so if you’re in the UK or EU he can save you shipping costs.
Not sure which enclosure design would be right for you? You can buy this unit and the 3D printed enclosure separately then just swap the M5Dial, encoder(s), and CW paddle jack to the enclosure that works best for you.
CTR2-Dial is the big brother of CTR2-MIDI. Like the MIDI it is a Bluetooth and USB MIDI controller that is compatible with radio control apps such as Marcus’ (DL8MRE) excellent iOS/MacOS radio control apps, Remote Ham Radio, Thetis, SDR-Console, and other radio control programs that support MIDI control.

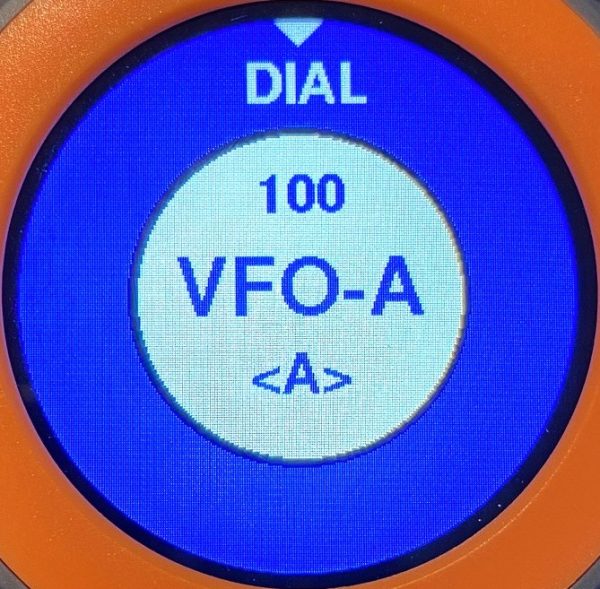

CTR2-Dial includes a touchscreen display that doubles as a control surface offering virtual Dials and Buttons that allow you to easily change the frequency and settings on your radio. There 12 virtual dials for adjusting variable controls and 42 virtual pushbuttons that are mapped to control various functions on your radio such as mode, filter, DSP, and band selection.
Connect your CW paddle to the single-encoder CTR2-Dial and operate true CW on your remote radio (if supported by your app).
It is available either fully assembled, programmed, and tested, or as a partially completed kit that you add your M5Dial to. It’s available in either a single or dual-encoder package.
Single-encoder models include a 3.5mm CW paddle jack.
Dual-encoder models do not include a CW paddle jack.
Select from no-detent (smooth) or detent (bumpy) encoder types.
This unit includes a CTR2-Dial license key. Please check the Add a note to your order section on the Checkout page and enter your call sign so I can create your key.
