CTR2-Dial
$100.00 Original price was: $100.00.$80.00Current price is: $80.00.
August 26, 2026
USPS has changed the way it handles international shipping costs. Please see my post here for more information.
CTR2-Dial includes a touchscreen display that doubles as a control surface offering virtual Dials and Buttons that allows you to easily change the frequency and settings on your radio.

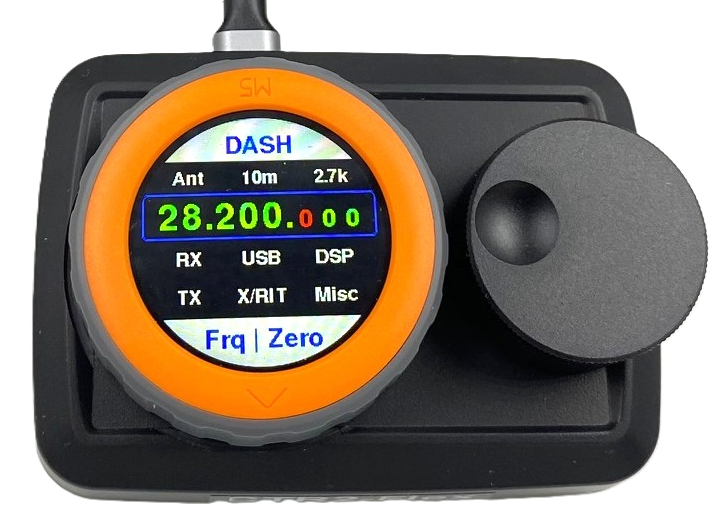

CTR2-Flex firmware has a built-in keyer and sidetone and a Dashboard page that brings all of the controls to a compact, easy to navigate control page. CTR2-Flex firmware does not support SmartLink. For remote operation with SmartLink you can boot it into CTR2-Dial firmware* and use it as a MIDI controller with SmartSDR for iOS/MacOS.
Single-knob models support CW paddle input so you can connect your CW paddle to operate CW over your network connection. The CW paddle input jack can also be used for a straight-key (or external keyer) and a PTT switch.
NOTE: Keying operation with CTR2-Dial firmware is dependent on the radio control app’s support for paddles, keying, and PTT.
In CTR2-Dial mode, the unit becomes a Bluetooth and USB MIDI touchscreen controller that is compatible with radio control apps such as Marcus’ (DL8MRE) excellent iOS/MacOS radio control apps, Remote Ham Radio, Thetis, SDR-Console, and many other radio control programs that support MIDI control.
You can choose between a commercial, injection-molded, CNC milled, New Age enclosure or a 3D printed enclosure to house the CTR2-Dial components. The New-Age enclosure allows you to configure the unit in four configurations as seen in the photo gallery. Simply move the tilt legs to the side you want elevated and use the Rotate Display option in the Settings menu to rotate the display. Two additional flat feet are provided if you just want to set the unit flat on your desk.
The 3D enclosure was been designed by Neil, G7UFO. It gives CTR2-Dial a unique, custom look. Neil also sells CTR2-Dial’s in his enclosure in his shop so if you’re in the UK or EU he can save you shipping costs.
For more information scroll down or visit the CTR2-Dial page.
Please enter your call sign in the Add a note to your order section on the Checkout page so I can create your registration key.
Description
CTR2-Dial* includes a touchscreen display that doubles as a control surface offering virtual Dials and Buttons that allow you to easily change the frequency and settings on your radio. There are 18 virtual dials for adjusting variable controls and 60 virtual pushbuttons that can be mapped to control various functions on your radio such as mode, filter, DSP, and band selection.
Connect your CW paddle to the single-encoder CTR2-Dial and operate true CW on your remote radio (if supported by your app).
External encoder options include either one encoder with a large VFO type knob, or two encoders with small knobs.
- Single-encoder (large knob) models include no-detent (smooth) encoder and a 3.5mm CW paddle jack.
- Dual-encoder (small knobs) models come with detent (bumpy) encoders and do not include a CW paddle jack.
NOTE: The M5Dial has a built-in 12-detent encoder that is not counted in the knob count but it can be assigned a to dial function.
* This unit ships with CTR2-Flex v2 firmware. This firmware can boot into CTR2-Dial or CTR2-Flex. The firmware boot option can be selected in the Settings menu.
